Punching Mould Cr12 Steel Slat Rolling Shutter Door Roll Forming Machine

Jiangyin Dingbo Technology CO., Ltd.
Contact Now

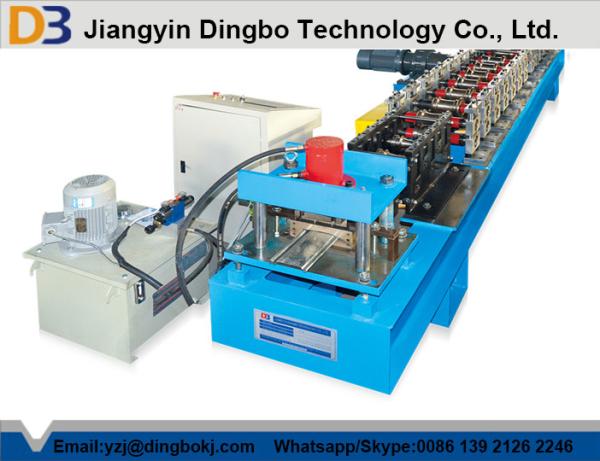

Punching Mould Cr12 Steel Slat Rolling Shutter Door Roll Forming Machine

Brand Name : Dingbo

Model Number : DBRS1

Certification : ISO,CE,SGS

Place of Origin : Jiangsu, China (Mainland)

MOQ : 1

Price : USD10,000-15,000

Payment Terms : TT/LC

Supply Ability : 10sets/month

Delivery Time : Shipped in 30-70 days after payment

Packaging Details : Export standard sea package with film and steel

Raw material : Colored Steel

Shaft material : High Grade No.45 Forged

Roller material : 45# Forged Steel

Roller driven type : Chain transmission

Machine Usage : Door

Product name : Punching Mould Cr12 Steel Slat Rolling Shutter Door Roll Forming Machine Shop Usage

Control system : PLC

Drive way : Chain transmission

Contact Now

Punching Mould Cr12 Steel Slat Rolling Shutter Door Roll Forming Machine Shop Usage

Main features

Roller shutter machine pressure equipment than traditional equipment with high efficiency, low energy consumption, and reduce environmental pollution, the steel structure also has a considerable breakthrough, bring more benefits to the market, with galvanized steel or different color steel or aluminum plate as raw material pressure equipment production line rolling shutter door, product color plate production volume gate brilliant color, do not fade, do not rust, widely used in store, workshop, warehouse, fire partition, strength is higher than the aluminum alloy door.

Working flow
Decoiling----Sheet Feeding ----Guilding----Roll forming-----Punching----Cutting----Out table

Punching Mould Cr12 Steel Slat Rolling Shutter Door Roll Forming Machine

Technical parameters

Composition Detail
Decoiler 1. (1) Max. Width: 300 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Max. Loading Capacity: 3000 kg

Revising Device

(1)Rollers: 1 group

(2)Material for roller: 45# steel polished and coated with chrome HRC55-60°

(3)Functon:it uses for revising the finished product to make the product straight.

Roll Forming

(1)Material Thickness: 0.6-1.2mm

(2)Rollers: 14Groups
(3)Material for Rollers: 45# steel polished and coated with chrome HRC55-60°
(4)Material for shaft: high grade No.45 steel after treatment

(5)Diameter of shaft: 65mm

(6)Frame panel thickness: 14mm

(7)Bottom frame: 36# H-section steel
(8) Motor Power: 5.5 kW
(9) Rolling Speed: about 10m/min

(10)Driven type:1.0"Chain

CUT-OFF DEVICE

(1)Type: mould cutting

(2)Material for Cut-Off Modular:Cr12 steel
(3)Hardness for Heat Treatment:HRC55 – 60°
(4)Motor: 3 Kw

PLC Control System

(1) PLC Brand: Delta
(2) Encoder Brand: Omron

(3)Length Error: ±2mm

(4)Language: English and Chinese

(5)Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)

Product Rack

(1)Length: 2m

(2)Type: manual without power

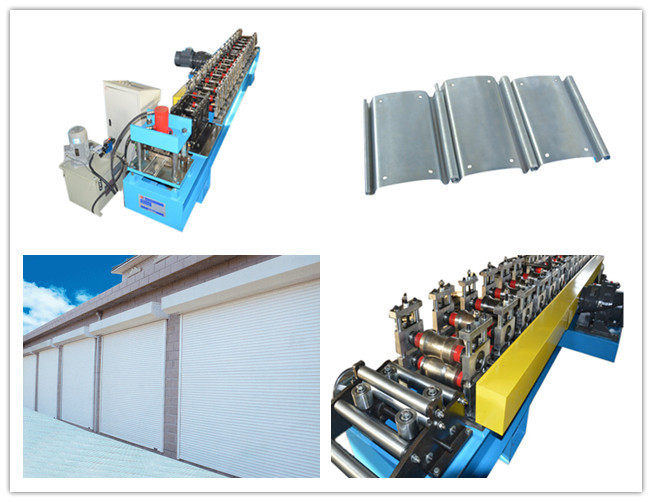

Machine pics

Punching Mould Cr12 Steel Slat Rolling Shutter Door Roll Forming Machine

Profile drawing

Punching Mould Cr12 Steel Slat Rolling Shutter Door Roll Forming Machine

Our services

Advanced machinery, well trained workers.

More than 20 years experience in roll forming machine industry.

Unique designed, good Germany quality, competitive China price.

Full process of roll forming machine solution.

Shipment arrangement available.

After-sales services for overseas installation and commissioning

Our company

Jiangyin Dingbo Technology Co., Ltd. is professional manufacturer and exporter specializing in designing, manufacturing, technology developing, sales and services in building materials machinery whcih mainly include all kinds of roll forming machine, tube making machine, slitting line and cut to length line,and discontinuous PU sandwich panel production line and embossing machine.

The main products of our factory is color steel roofing and wall roll forming machine, pre-painted steel forming machine, floor deck forming machine, automatical C/Z Purlin forming machine, Guardrail forming machine, Racking roll forming machine, cable tray roll forming machine, Glazed Tile forming machine, DownPipe forming machine, Roller shutter door machine,tube mill, steell and aluminum embossing machine,steel slitting and cut to length line, PU sandwich panel line and so on.

The products are widely used in such as building structure, steel structure warehouse, factory buildings, supermarket, Nursing homes, villas and other construction projects, Our factory can meet the construction enterprises, automobile industry, Iron and steel production enterprises' growing demands.

Dingbo Technology is located in Wuxi city, Jiangsu province which is very close to Shanghai, It's about half an hour's journey. We enojoy the convenient transportation and advantageous location which supply good business opportunities for the buyers home and abroad.

FAQ

1. Does one machine can only produce one size?

Not exactly, it depends on which profile the customer want to produce.

2.Do you have after-sales technical support?

Yes,we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers’ workshop if needed.

3. You are trading company or factory?

We are Manufacturer, and we export our machine by ourselves.

4.How long the machine could be made?

Normally speaking, high precision roll forming machine could be made out with 40 working days.If you need machines in hurry, we can make it for you less than a month.

5. Do you provide customized?

Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.

6. May we visit your factory?

Sure,Warmly welcome to our factory at any time.

7.How to visit your factory?

By high speed train from Shanghai to East Wuxi (Wuxi Dong station), half an hour.

8.What's the warranty period?

12 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the Buyer’s Installation site.

9.Can we arrange shipment?

Yes, sure, we can arrange shipment for our customers and provide door-to-door service.

Best Regards

Andy Yang

Director

Mobile/Wechat/Skype:0086 139 2126 2246
